Highlight:
                                                                                                                                                                                                                                                                                                                Customizable dissolved air flotation machine, Stainless Steel dissolved air flotation machine, Large sum  daf water treatment


Processing Capacity:	Customizable	Material:	Stainless Steel
Operating Cost:	Low	Control Mode:	Automatic
Application:	Sewage Treatment	Capacity:	Customizable
Installation:	Easy	Warranty:	1 Year

Processing Capacity:	Customizable
Material:	Stainless Steel
Operating Cost:	Low
Control Mode:	Automatic
Application:	Sewage Treatment
Capacity:	Customizable
Installation:	Easy
Warranty:	1 Year

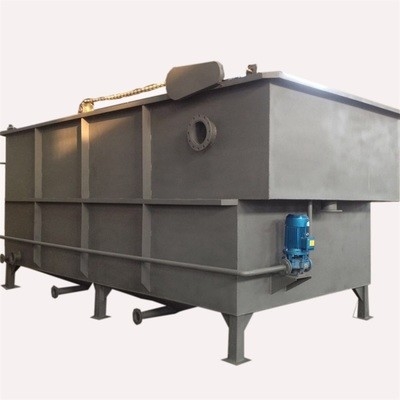

Customizable Stainless Steel Dissolved Air Floatation Machine Large Sum Daf Water Treatment

Customizable Dissolved Air Floatation

1. Description

Norson series Dissolved Air Floatation is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.

2. Application

(1) Remove oil and TSS.

(2) Separate small particles and algae in groundwater.

(3) Recover valuable products in industrial sewage such as paper pulp.

(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.

3. Features

(1) Large capacity, high efficiency and small occupying space.

(2) Compact structure, easy operation and maintenance.

(3) Silt expansion elimination.

(5) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water. Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.

(6) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and more algae.

Suitable area:

slaughtering, starch, pharmaceuticals, papermaking, printing and dyeing,

leather and tannery, petrochemical industry, domestic wastewater, etc.

4. Flow Process Diagram
Customizable Stainless Steel Dissolved Air Floatation Machine Large Sum Daf Water Treatment 0

1. Clear water reservoir
2. Clear water pump
3. Control valve
4.5. Pressure gage
6. Dissolved gas tank
7. Control valve
8. Air compressor
9. Releaser
10. Foam scraper
11. Air floating pond
12. Water collector
13. Jet device
14. Control valve
15. Dosing tank
16. Sewage pump
17. Flow meter
18. Sewage pond
