Highlight:
                                                                                                                                                                                                                                                                                                                Automatic  Vacuum Belt Filter, ODM Vacuum Belt Filter, horizontal belt filter for control system


Processing Capacity:	Customizable	Material:	Stainless Steel
Operating Cost:	Low	Control Mode:	Automatic
Application:	Sewage Treatment	Capacity:	Customizable
Installation:	Easy	Warranty:	1 Year

Processing Capacity:	Customizable
Material:	Stainless Steel
Operating Cost:	Low
Control Mode:	Automatic
Application:	Sewage Treatment
Capacity:	Customizable
Installation:	Easy
Warranty:	1 Year

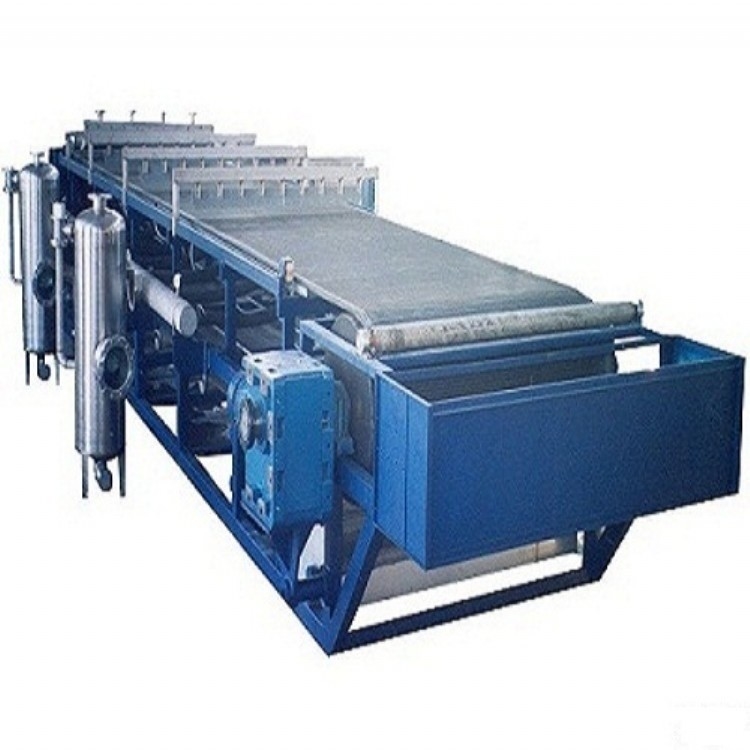

Automatic Vacuum Belt Filter Horizontal Belt Filter For Control System

Vacuum Belt Filter

Product Discription
1. Modularized design is for easy installation and transportation.
2. High auto degrees: Consecutive auto feeding, filtering, washing, dewatering, discharging, cloth cleaning improves production efficiency,
3. Fast filter speed: large particles will settle at the lower layer while small particles upper layer when material goes through sedimentation area. Reasonable structure of filter cake ensures low resistance of liquid for fast filter of thin layer.
4. Convenient filter technology: cake thickness, water vol., counter current decantation stages, vacuum degree, filter speed can be adjusted for optimistic effect.
5. Fine decantation effect: even and thorough multi-stage advection or counter current decantation makes collection and reuse of mother liquor and washing liquor separately.
6. DSC for control system ensures site control and remote control automatition.

Vacuum Box and Lifting Device
Vacuum box is connected by section as a whole and each section is connected with liquid collection pipe to form a vacuum liquid collection system. There is also a lifting device for easy change of friction belt.

Adjusting Device
Auto-adjustment of cloth by cylinder or gasbag for normal operation.
Tightening device works through screws for sufficient friction to avoid deviation.
Water jet for cloth and tape washing and sealed vacuum box for site cleaning, head is from US spraying system co. for better performance.
