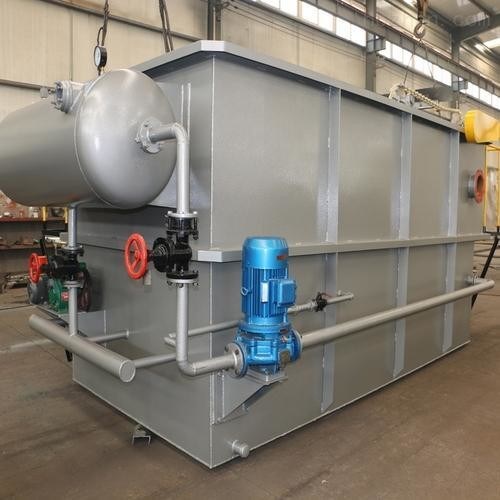

DAF Dissolved Air Flotation Machine 4-6 Bar Air Saturation Pressure Automatic Operation

Brand Name:	NORSON
Model Number:	003

Detail Information

Product Description

Detail Information

Operating Cost:

Low

Treatment Process:

Physical Treatment

Capacity:

Varies From 1 To 500 M³/h Depending On Model

Installation:

Indoor Or Outdoor, Requires Flat Foundation

Air Saturation Pressure:

Typically 4-6 Bar

Dimensions:

Customized According To Capacity, Typical Length 2-10 Meters

Control Mode:

Automatic

Application:

Sewage Treatment

Highlight:

4-6 Bar DAF Dissolved Air Flotation Machine

Dissolved Air Flotation System

Automatic Gas-Induced Flotation Machine

Product Description

DAF Dissolved Air Flotation System

Advanced wastewater treatment system designed for efficient removal of suspended solids, oils, greases, and contaminants through physical separation process.

System Overview

The DAF Dissolved Air Flotation Machine utilizes advanced physical treatment technology to effectively separate impurities from wastewater. Operating on the principle of dissolving air in water under pressure and releasing it at atmospheric pressure, the system generates fine microbubbles that attach to suspended particles, causing them to float to the surface for removal.

Key Features

High Efficiency: Up to 95% removal of suspended solids and oils
Automatic Operation: Fully automated control system for consistent performance
Flexible Installation: Suitable for indoor or outdoor use with flat foundation requirement
Custom Dimensions: Tailored length from 2 to 10 meters based on capacity needs
Air Flotation Unit: Integrated dissolver for efficient air dissolution
Low Operating Cost: Economical wastewater treatment solution

Technical Specifications

Air Saturation Pressure	4 to 6 Bar
Control Mode	Automatic
Installation	Indoor or Outdoor
Application	Sewage Treatment
Dimensions	Customized (2-10 meters typical length)
Treatment Process	Physical Treatment
Removal Efficiency	Up to 95% for suspended solids and oils
Material Options	Stainless Steel or Carbon Steel with anti-corrosion coating

Industrial Applications

This system is ideal for municipal wastewater treatment plants, food processing facilities, petrochemical plants, paper mills, and metal finishing operations. The NORSON model 003 DAF system effectively treats water streams with high impurity concentrations while enabling material recovery and equipment protection.

Customization Services

The NORSON DAF system offers comprehensive customization options including dimensional adjustments, material selection, and capacity optimization to meet specific wastewater treatment requirements and site constraints.

Benefits: Environmentally friendly operation, reduced chemical usage, cost-effective maintenance, and compliance with environmental regulations.
