Compact Skid Mounted Dissolved Air Flotation Unit for Space Limited Installation

Compact Skid Mounted Dissolved Air Flotation Unit for Space Limited Installation

Brand Name:	ECER
Model Number:	ECER-DAF-CP30
MOQ:	1 Set
Price:	USD 4,500 - 22,000 / Set
Delivery Time:	15-25 Working Days
Payment Terms:	L/C,T/T,Western Union,PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

CE, ISO 9001

Total Power:

1.5 - 5.5 KW

Surface Loading:

6 - 8 M³/(m²·h)

Skid Dimensions:

2.5 X 1.5 M (Smallest)

Flow Rate:

1 - 30 M³/h

Total Height:

2.4 - 3.0 M

SS Removal:

≥ 88%

Packaging Details:

Single-Lift Shrink-Wrapped Skid Assembly

Supply Ability:

40 Sets per Month

Highlight:

compact skid daf unit

space saving flotation machine

modular daf treatment system

Product Description

Compact Skid Mounted Dissolved Air Flotation Unit for Space Limited Installation

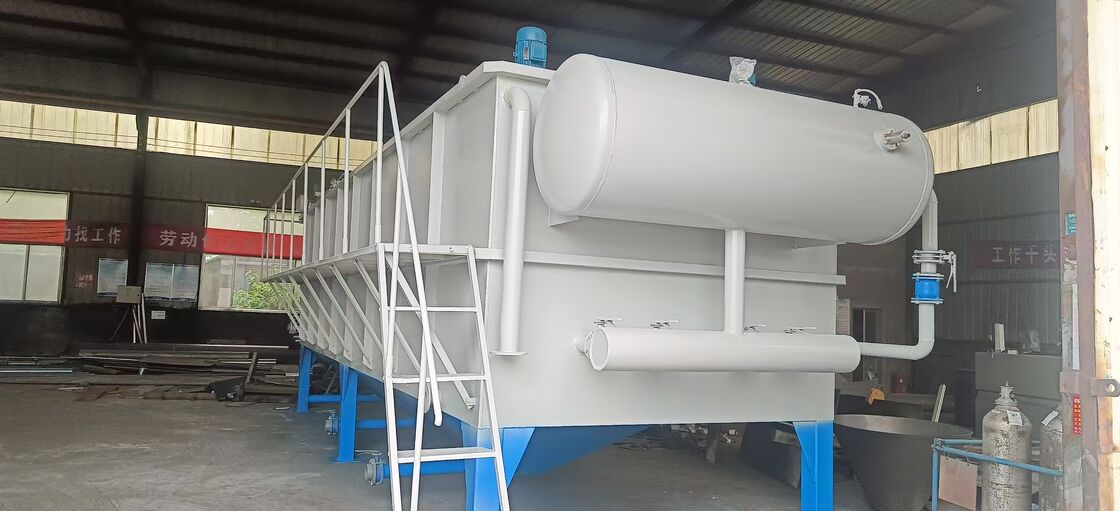

This Compact Skid Mounted Dissolved Air Flotation Unit is engineered specifically for installations where available floor space is limited and rapid deployment is a priority. The entire treatment system including the flotation cell, dissolved air saturation circuit, chemical dosing stations, and control panel is pre-assembled on a single structural steel skid measuring as little as 2.5 meters in length, enabling installation inside existing equipment rooms, containerized treatment modules, or mezzanine platforms without requiring dedicated building extensions.

Key Features

Ultra-Compact Skid Footprint: Complete system mounted on a single steel skid starting at just 2.5 by 1.5 meters, occupying up to 60 percent less floor area than equivalently rated conventional DAF configurations.
Stacked Vertical Architecture: Space-saving elevated dissolved air vessel placement combined with frame-nested chemical tanks maximizes treatment capacity within a reduced horizontal footprint without sacrificing access for maintenance.
High-Rate Hydraulic Design: Optimized lamella plate geometry and inlet distribution baffle configuration maintains stable plug-flow hydraulics at surface loading rates up to 8 m³/(m²*h) for throughput equivalent to larger units.
Single-Skid Edge Connections: All utility connections including influent, effluent, sludge discharge, chemical feed, compressed air, and electrical power terminate at one accessible skid face with clearly labeled flanged or quick-connect fittings.
Forklift-Ready Lifting Points: Integrated lifting lugs and forklift pockets on the skid base frame allow positioning with standard material handling equipment without requiring a crane or specialized rigging gear.
Container-Compatible Dimensions: Standard models are engineered to fit through double doorways and within ISO shipping container internal dimensions, enabling cost-effective international transport and mobile deployment scenarios.
Tool-Free Access Panels: Hinged inspection hatches with quarter-turn latches provide rapid access to all internal components for routine inspection and cleaning without requiring specialized maintenance tools.

Technical Specifications

Parameter	Specification
Model Series	ECER-DAF-CP Series
Flow Rate Range	1 - 30 m³/h
Skid Dimensions (LxW)	2.5 x 1.5 m (Smallest Model)
Total Installed Height	2.4 - 3.0 m
Surface Loading Rate	6 - 8 m³/(m²*h)
Floor Space Reduction	Up to 60% vs. Conventional DAF
SS Removal Efficiency	≥ 88%
Oil Removal Efficiency	≥ 82%
Total Installed Power	1.5 - 5.5 kW
Connection Type	Single-Edge Flanged Terminations
Tank Material	Carbon Steel Epoxy / SS304 Option

Applications

The compact skid-mounted DAF unit is the definitive solution for space-constrained facilities that cannot accommodate traditional large-footprint wastewater treatment equipment. Small to medium-sized metal fabrication shops with limited floor area between production machinery install these units to treat parts washer effluent and coolant wastewater without sacrificing valuable manufacturing space. Commercial building basement mechanical rooms serving restaurants, cafes, and food courts in urban high-rise developments deploy the compact units for kitchen grease trap effluent polishing before discharge to municipal sewers. Mobile wastewater treatment service providers mount these skid units on trailers or within shipping containers for rapid-response temporary treatment at construction site dewatering projects, emergency spill response operations, and remote industrial camp installations. Marine vessel operators including cruise ships, offshore platforms, and dredging barges utilize the space-efficient design for onboard bilge water treatment in cramped engine room compartments where every square meter of deck space is at a premium. Pharmaceutical pilot plants and research facilities requiring small-scale treatment of laboratory wastewater streams appreciate the compact footprint that fits within existing utility corridors and service rooms without requiring facility modifications or building permits.

Packaging & Quality Assurance

Each compact DAF skid undergoes a complete factory wet test with water to verify all mechanical, hydraulic, and electrical functions before the skid is shrink-wrapped and prepared for shipment. The entire skid assembly ships as a single lift, eliminating the need for on-site assembly of separate components and reducing commissioning time to a single day of utility connection and operational verification. A weatherproof shipping cover protects instrumentation and electrical enclosures during outdoor storage at the destination site. Documentation deliverables include as-built skid dimensional drawings, utility connection diagrams with pipe sizing recommendations, a quick-start commissioning checklist, operator training presentation slides, and a preventive maintenance schedule organized by weekly, monthly, and quarterly tasks. Our standard 12-month warranty covers all skid-mounted components against manufacturing defects. We provide optional factory witness testing where customer representatives can observe the performance test at our facility before shipment, along with video-based remote commissioning support to guide on-site personnel through the startup procedure via live video conference with our engineering team.
